The following is a brief description of the various ocean freight containers.

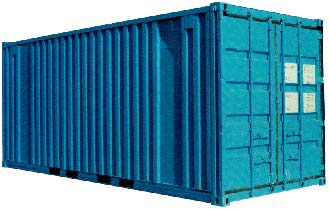

20' / 40' Conventional End Open Container |
||||
| Standard 20' | Standard 40' | |||
| Internal Length: | 19'4" | 5.89 m | 39'5" | 12.01 m |
| Internal Width: | 7'8" | 2.33 m | 7'8" | 2.33 m |
| Internal Height | 7'10" | 2.38 m | 7'10" | 2.38 m |
| Door Width: | 7'8" | 2.33 m | 7'8" | 2.33 m |
| Door Height: | 7'6" | 2.28 m | 7'6" | 2.28 m |
| Capacity: | 1,172 ft³ | 33.18 m³ | 2,390 ft³ | 67.67 m³ |
| Tare Weight: | 4,916 lb | 2,229 kg | 8,160 lb | 3,701 kg |
| Max. Gross Cargo: | 47,999 lb | 21,727 kg | 59,040 lb | 26,780 kg |

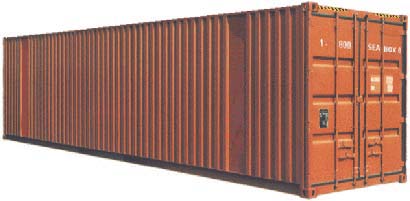

40' High Cube Container |
||
| 40' High Cube | ||
| Internal Length: | 39'5" | 12.01 m |
| Internal Width: | 7'8" | 2.33 m |
| Internal Height | 8'10' | 2.69 m |
| Door Width: | 7'8" | 2.33 m |
| Door Height: | 8'5" | 2.56 m |
| Capacity: | 2,694 ft³ | 76.28 m³ |
| Tare Weight: | 8,750 lb | 3,968 kg |
| Max. Gross Cargo: | 58,450 lb | 26,512 kg |

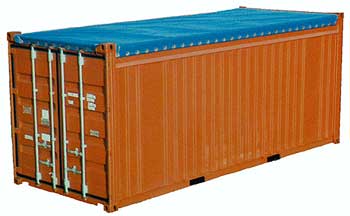

20' / 40' Open Top Container |
||||
| 20' Open Top | 40' Open Top | |||
| Internal Length: | 19'4" | 5.89 m | 39'5" | 12.01 m |
| Internal Width: | 7'7" | 2.31 m | 7'8" | 2.33 m |
| Internal Height | 7'8" | 2.33 m | 7'8" | 2.33 m |
| Door Width: | 7'6" | 2.28 m | 7'8" | 2.33 m |
| Door Height: | 7'2" | 2.18 m | 7'5" | 2.26 m |
| Capacity: | 1,136 ft³ | 32.16 m³ | 2,350 ft³ | 66.54 m³ |
| Tare Weight: | 5,280 lb | 2,384 kg | 8,490 lb | 3,850 kg |
| Max. Gross Cargo: | 47,620 lb | 21,600 kg | 58,710 lb | 26,630 kg |

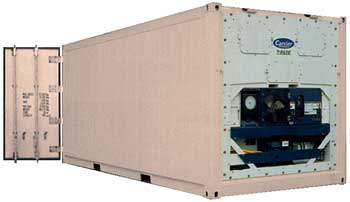

20' / 40' Reefer Container |
||||
| 20' Reefer | 40' Reefer | |||
| Internal Length: | 17'8" | 5.38 m | 37'8" | 11.48 m |
| Internal Width: | 7'5" | 2.26 m | 7'5" | 2.26 m |
| Internal Height | 7'5" | 2.26 m | 7'2" | 2.18 m |
| Door Width: | 7'5" | 2.26 m | 7'5" | 2.26 m |
| Door Height: | 7'3" | 2.20 m | 7'0" | 2.13 m |
| Capacity: | 1,000 ft³ | 28.31 m³ | 2,040 ft³ | 57.76 m³ |
| Tare Weight: | 4,040 lb | 3,193 kg | 10,780 lb | 4,889 kg |
| Max. Gross Cargo: | 45,760 lb | 20,756 kg | 59,276 lb | 25,526 kg |

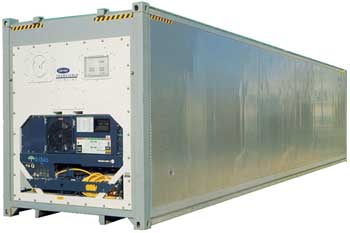

40' High Cube Reefer Container |
||
| 40' High Cube Reefer | ||
| Internal Length: | 37'5" | 11.30 m |
| Internal Width: | 7'5" | 2.23 m |
| Internal Height | 8'2' | 2.45 m |
| Door Width: | 7'6" | 2.25 m |
| Door Height: | 8'0" | 2.40 m |
| Capacity: | 2,340 ft³ | 70.2 m³ |
| Tare Weight: | 9,900 lb | 4,500 kg |
| Max. Gross Cargo: | 57,500 lb | 25,900 kg |

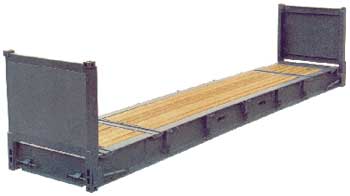

20' / 40' Flat Rack Container |
||||
| 20' Flat Rack | 40' Flat Rack | |||
| Internal Length: | 18'5" | 5.61 m | 39'7" | 12.06 m |
| Internal Width: | 7'3" | 2.20 m | 6'10" | 2.08 m |
| Internal Height | 7'4" | 2.23 m | 6'5" | 1.95 m |
| Tare Weight: | 5,578 lb | 2,530 kg | 12,081 lb | 5,479 kg |
| Max. Gross Cargo: | 47,333 lb | 21,469 kg | 85,800 lb | 38,916 kg |
20' / 40' Collapsible Flat Rack Container |
||||
| 20' Collapsible Flat | 40' Collapsible Flat | |||
| Internal Length: | 18'6" | 5.63 m | 39'7" | 12.06 m |
| Internal Width: | 7'3" | 2.20 m | 6'10" | 2.08 m |
| Internal Height | 7'4" | 2.23 m | 6'5" | 1.95 m |
| Tare Weight: | 6,061 lb | 2,749 kg | 12,787 lb | 5,800 kg |
| Max. Gross Cargo: | 61,117 lb | 27,722 kg | 85,800 lb | 38,918 kg |
20' / 40' Platform based Container |
||||
| 20' Platform | 40' Platform | |||
| Internal Length: | 19'11" | 6.07 m | 40'0" | 12.19 m |
| Internal Width: | 8' 0" | 2.43 m | 8'0" | 2.43 m |
| Internal Height | 7'4" | 2.23 m | 6'5" | 1.95 m |
| Tare Weight: | 6,061 lb | 2,749 kg | 12,783 lb | 5,798 kg |
| Max. Gross Cargo: | 52,896 lb | 23,993 kg | 66,397 lb | 30,117 kg |
20' Tank Container |
||||
| 20' Tank | ||||
| Internal Length: | 20'0" | 6.0 m | ||
| Internal Width: | 8' 0" | 2.4 m | ||
| Internal Height | 8'6" | 2.55 m | ||
| Capacity: | 900 ft³ | 2,749 m³ | ||
| Max. Gross Cargo: | - | 23,600 kilolitres | ||
